Photos of a Compton traps regulator.

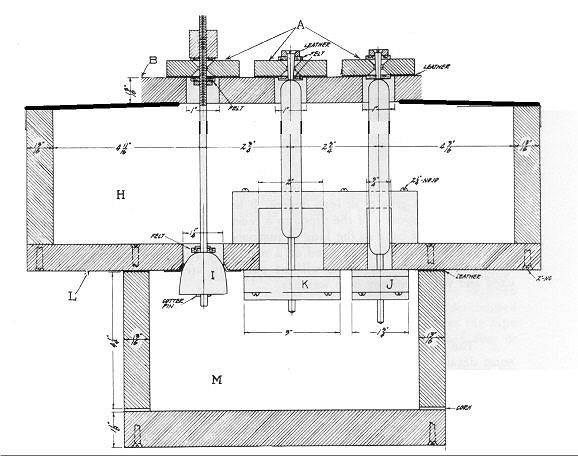

Illustration of a three-valve organ regulator
Illustration of a "Winker" type regulator.
ILLUSTRATIONS OF VARIOUS PIPE ORGAN REGULATORS:
(Taken from photos and diagrams sent to our knowledge base by members of the Theatre Organs Mailing List. )
|
|

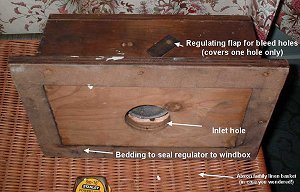

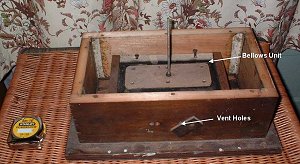

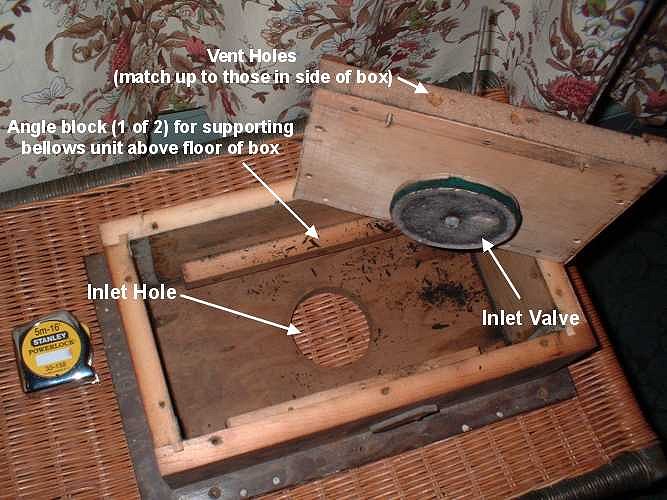

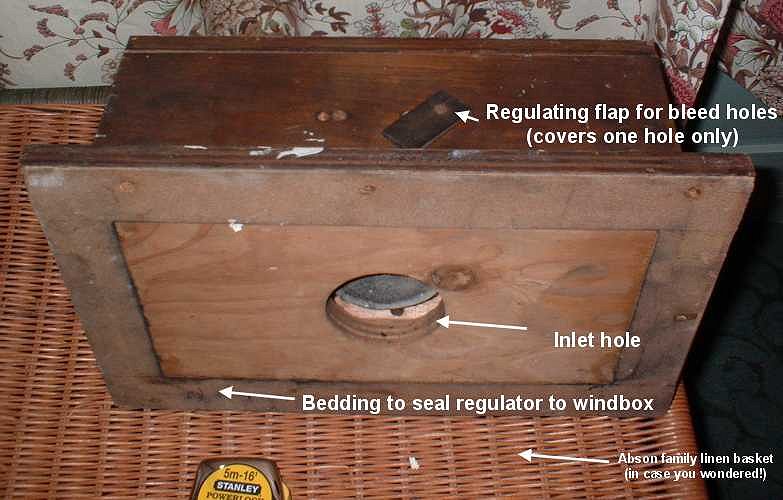

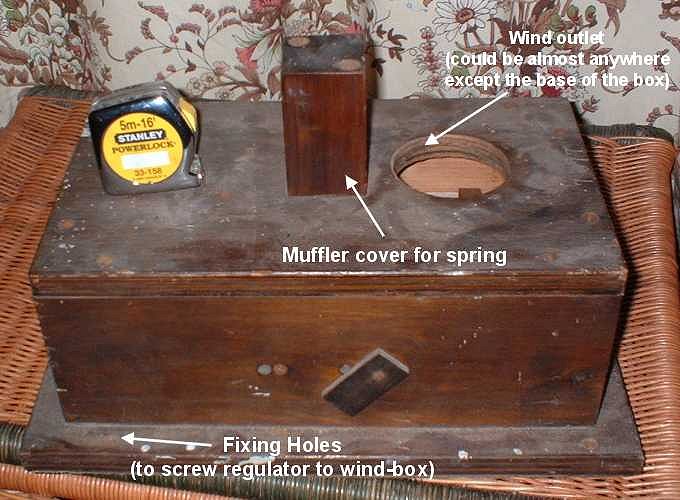

| ( Photos 1-6 courtesy of John Abson) Photos of a Compton traps regulator. |

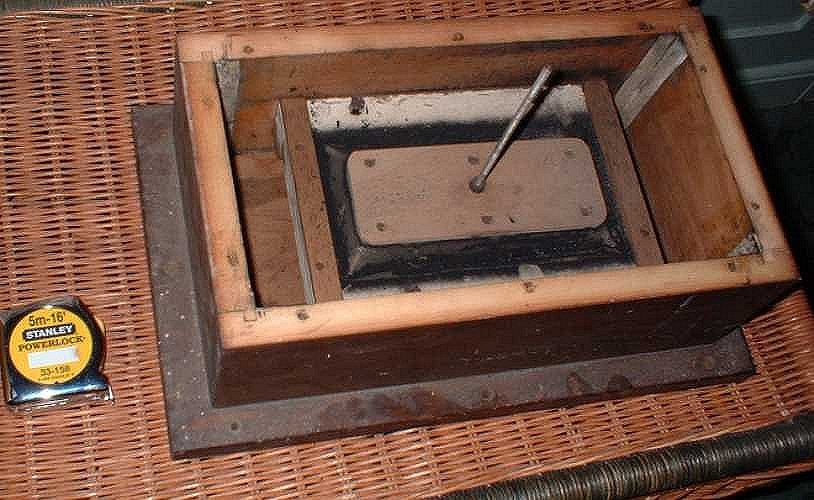

Compton regulator with cover removed |
|
|

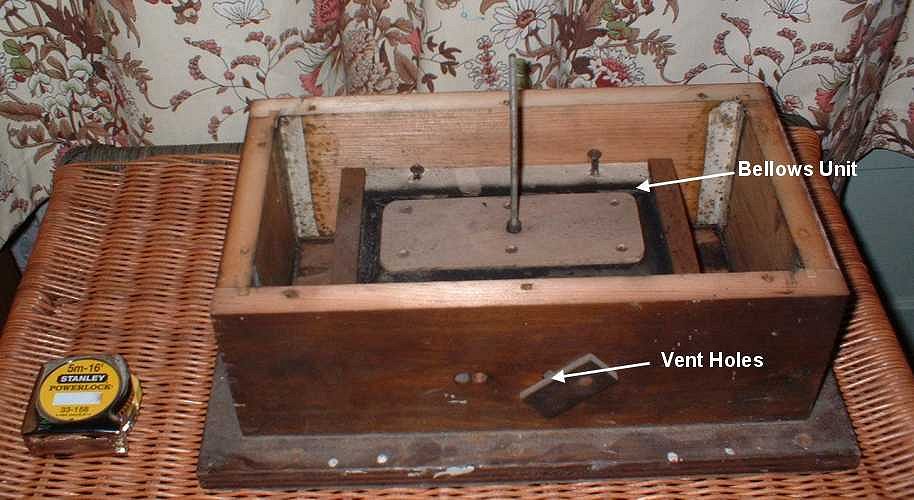

| Compton traps regulator valve detail | |
|
|

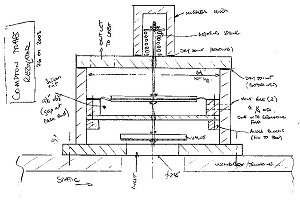

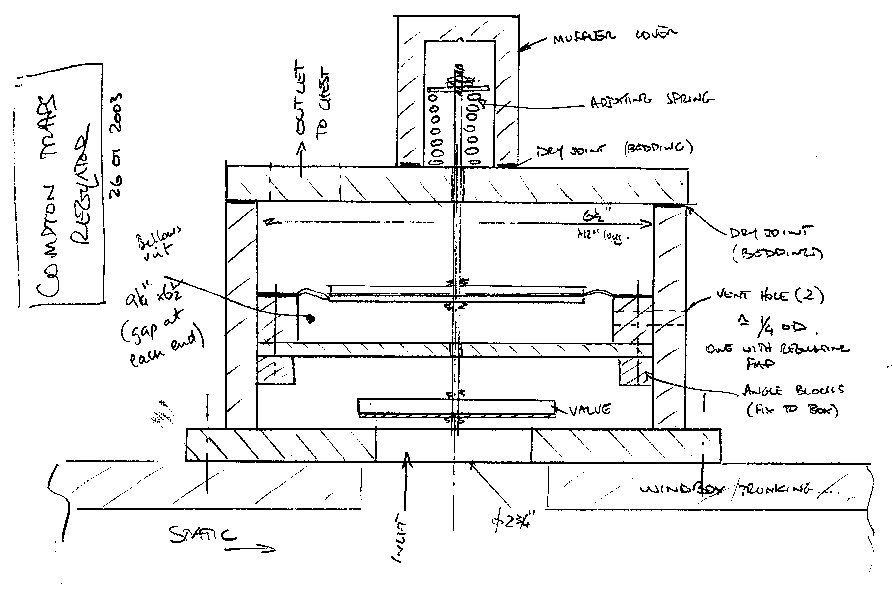

| Thanks to John for sharing these photos. | Schematic of Compton Traps Regulator |
|
|
| (Photo courtesy of Buddy Boyd) Illustration of a three-valve organ regulator |

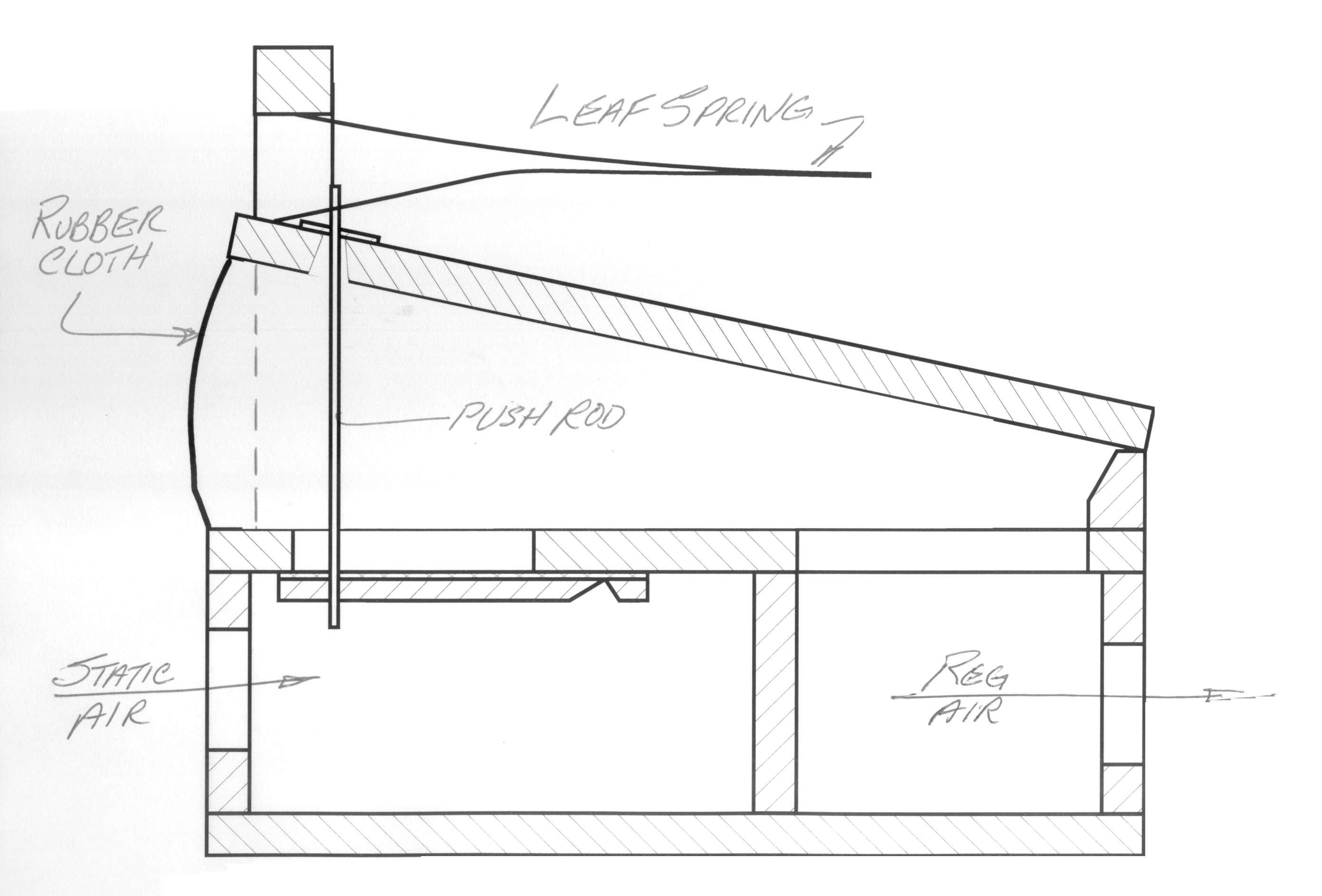

(Photo courtesy of Buddy Boyd) Illustration of a "Winker" type regulator. |
